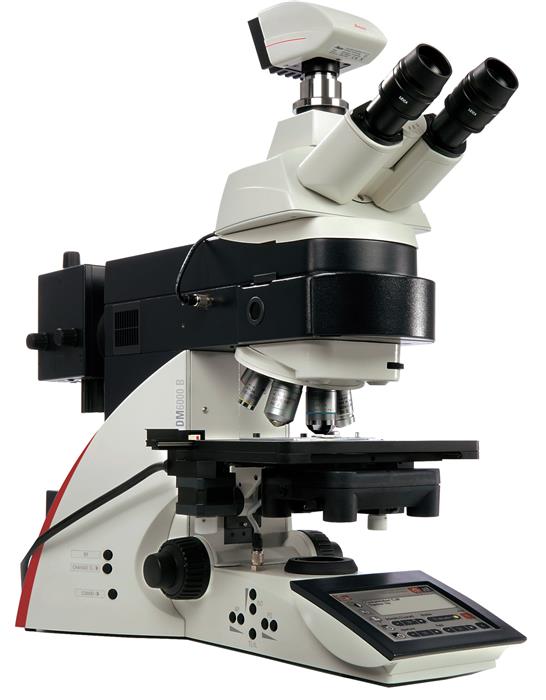

Tutti i comuni metodi di luce incidente sono facilmente combinabili. E’ possibile avere anche la luce trasmessa . Una singola pressione sul touch screen, o utilizzando il software PC, imposta il livello di illuminazione , il diaframma di apertura , seleziona l'obiettivo e il metodo di contrasto completamente in automatico e gestisce , otimizzandola , la luce. Questa funzione è ideale per riprodurre le impostazioni di osservazione al microscopio e lascia all'operatore più tempo per la sua ricerca ed interpretazione. Il microscopio Leica DM6000 M è disponibile anche con un tavolino 6 "x 6" per l'ispezione in ambiente di microelettronica.

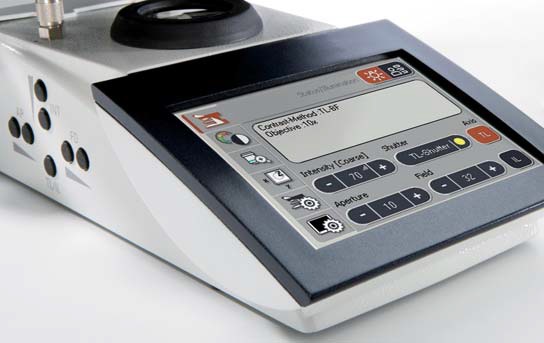

The touch-sensitive LeicaScreen is particularly easy to use. This screen shows you all the settings at a glance. Also, its clearly arranged menu structure takes you through the menu screens at lightning speed, and allows you to run all available motorized modules of the microscope. The Z drive of the Leica DM6000 M is motorized, providing you with the conveniences of parfocality, saved focus levels, and options for automated positioning of various Z levels. The Leica DM6000 M is also equipped with a motorized stage which functions as an integral part of the complete system and reacts to adjustments in magnification.

• LeicaScreen (7.3 x 7.3 cm) with information and control panels
• 2x RS 232 interfaces
• Motorized focus

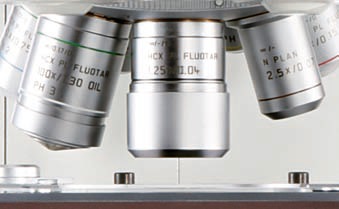

• Absolute encoded and motorized objective turret
• Objective turret with 6x M32 thread

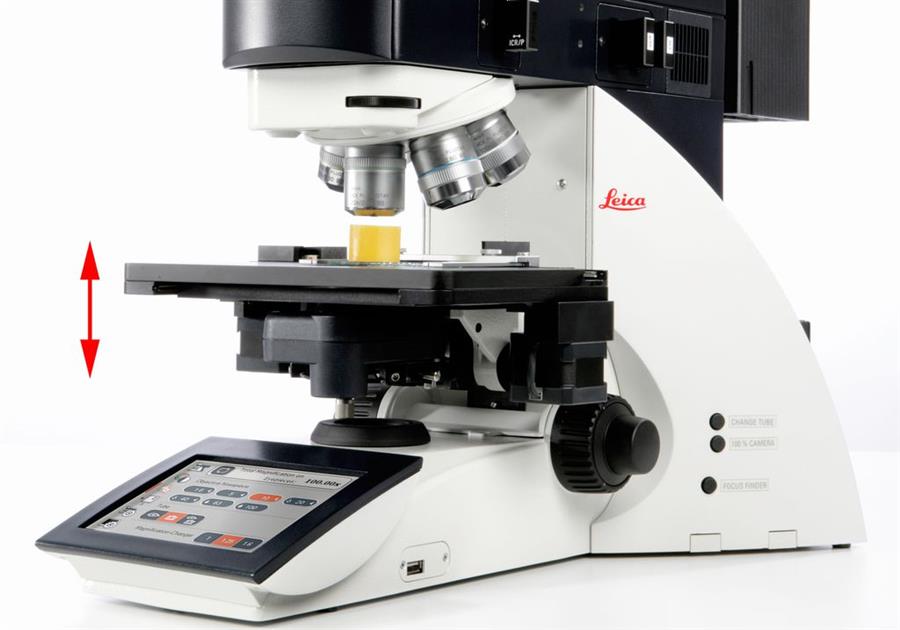

• Ceramic-coated motorized stage with stepper motor
• 6 freely programmable function buttons

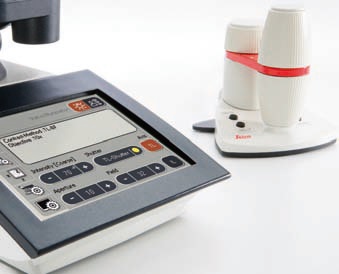

• SmartMove control elements for z (focus), x/y (stage) movement and 4 freely programmable function buttons
• Transmitted light axis with automatic illumination manager (brightness adjustment) and contrast manager (field and aperture diaphragm adjustment) and CCIC (color-neutral intensity control)
• Incident light axis with motorized filter disk (2 fixed positions and 2 variable positions), automatic illumination manager (adjustment of light intensity in 5 increments), automatic contrast manager (field diaphragm adjustment) and round and rectangular field diaphragms for ocular or camera observation
• Motorized condenser head
